                    產品名稱 :

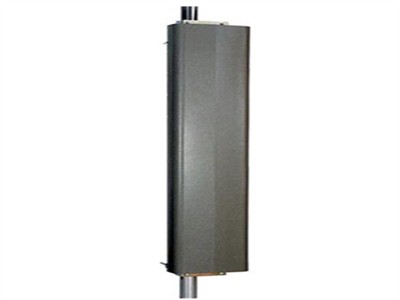

                    65°-18dBi基站平板定向天線（824-960MHz




                    產品類別 :
                    通信天線




                    型號 :
                    KTWTD-18065-08V / KTWTD-18065-09V




                    價格 :











                    (點擊圖片可放大)















        商品介紹


        主要特性


        規(guī)格參數(shù)


        配件/保修




































產品方向圖:




詳細說明:
型號Model                                                       KTWTD-18065-08V       KTWTD-18065-09V

        頻率范圍FrequencyRange                                   824-896(MHz)                890-960(MHz)

        輸入阻抗Input Impedance                                  50(Ω)

        駐波比系數(shù)VSWR                                                 <1.5

        增益Gain                                                            18(dBi)

        半功率波束(3dB)HPBW                                        65°H-plane     8°E-plane

        前后比F/B                                                           >25(dB)

        功率容量Maximum Power                                   500(W)

        極化方式Polarization                                          垂直極化Vertical Polarization

        交調PIM                                                             <-107(dBm)

        接口Connector Type                                          7/16或N-K

        閃電保護Lighting Protection                               直接接地Direct Ground

        抗風Wind Velocity                                              200(km/h)

        高/寬/厚Height/Width/Depth                              2300/290/90(mm)

        重量Weight                                                       17(Kg)

        抱桿直徑Hold Pole Diameter                              φ50-φ114(mm)
