                    產品名稱 :

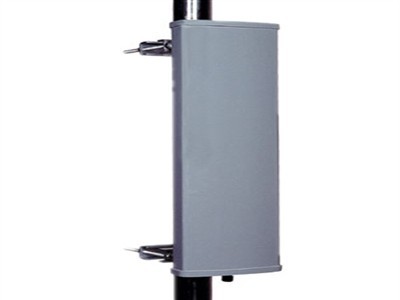

                     (1100-1300MHz)90°-15dBi平板天線




                    產品類別 :
                    通信天線




                    型號 :
                    KTWTD-15090-1.2V




                    價格 :











                    (點擊圖片可放大)















        商品介紹


        主要特性


        規格參數


        配件/保修




































品方向圖:




詳細說明:


        型號Model                                                                         KTWTD-15090-1.2V


        頻率范圍Frequency Range                                                 1100-1300(MHz)


        輸入阻抗Input Impedance                                                  50(Ω)


        駐波比系數VSWR                                                                 <1.5


        增益Gain                                                                            15(dBi)


        半功率波束(3dB)HPBW                                                        90° H-plane  13° E-plane

        前后比F/B                                                                           >23(dB)


        功率容量Maximum Power                                                   500(W)


        極化方式Polarization                                                          垂直極化 Vertical Polarization


        接口Connector Type                                                         7/16或N-K


        閃電保護Lighting Protection                                               直接接地 Direct Ground


        抗風Wind Velocity                                                             200(km/h)


        高/寬/厚Height/Width/Depth                                             1300/165/55(mm)


        重量Weight                                                                       9(Kg)


        抱桿直徑Hold Pole Diameter                                              φ50- φ110(mm)
