                    產品名稱 :

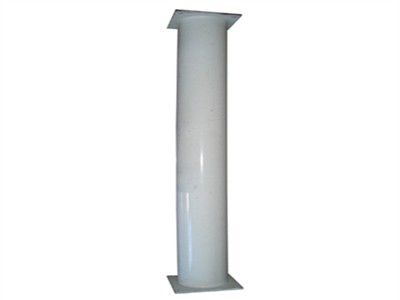

                    12DBi半向水平極化縫隙天線




                    產品類別 :
                    通信天線




                    型號 :





                    價格 :











                    (點擊圖片可放大)















        商品介紹


        主要特性


        規格參數


        配件/保修




































產品方向圖:




詳細說明:


        型號Model                                                                          TQWTF-12180-2.6H


        頻率范圍Frequency Range                                                   2500-2700(MHz)


        輸入阻抗Input Inpedance                                                    50(Ω)


        駐波比系數VSWR                                                                  <1.5


        增益Gain                                                                            12(dBi)


        半功率波束(3dB)HPBW                                                         6.5°E-plane    180°H-plane


        前后比F/B                                                                            >12(dB)


        功率容量Maximum Power                                                    500(W)


        極化方式Polarization                                                           水平極化 Horizontal Polarization


        接口Connector Type                                                            N-K


        閃電保護Lighting Protection                                                 直接接地 Direct Ground


        抗風Wind Velocity                                                               200(km/h)


        長度Length                                                                         1035(mm)


        重量Weight                                                                         5(Kg)
