                    產品名稱 :

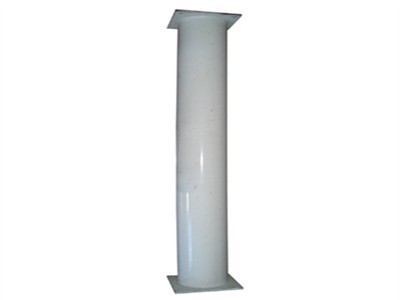

                    11dBi半向垂直極化縫隙天線




                    產品類別 :
                    通信天線




                    型號 :
                    KTWTF-11180-2.6V




                    價格 :











                    (點擊圖片可放大)















        商品介紹


        主要特性


        規格參數


        配件/保修




































產品方向圖:




詳細說明:


        型號Model                                                                KTWTF-11180-2.6V


        頻率范圍Frequency Range                                         2500-2700(MHz)


        輸入阻抗Input Inpedance                                          50(Ω)


        駐波比系數VSWR                                                        <1.5


        增益Gain                                                                   11(dBi)


        半功率波束(3dB)HPBW                                               8°E-plane    180°H-plane


        前后比F/B                                                                   >12(dB)


        功率容量Maximum Power                                           500(W)


        極化方式Polarization                                                  垂直極化 Vertical Polarization


        接口Connector Type                                                  N-K


        閃電保護Lighting Protection                                       直接接地 Direct Ground


        抗風Wind Velocity                                                      200(km/h)


        長度Length                                                                900(mm)


        重量Weight                                                                5.5(Kg)







　
