                    產品名稱 :

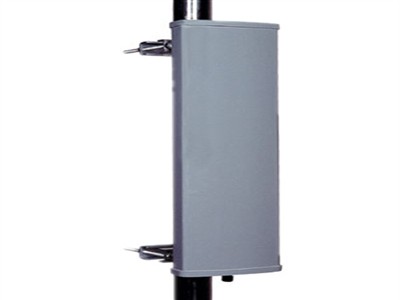

                     65°-15dBi基站平板定向天線（1710-1990MHz）




                    產品類別 :
                    通信天線




                    型號 :
                    KTWTD-15065-1.9V




                    價格 :











                    (點擊圖片可放大)















        商品介紹


        主要特性


        規格參數


        配件/保修




































產品方向圖:




詳細說明:
型號Model                                                                 KTWTD-15065-1.8V    KTWTD-15065-1.9V

        頻率范圍 FrequencyRange                                          1710-1880(MHz)         1850-1990(MHz)

        輸入阻抗Input Impedance                                          50(Ω)

        駐波比系數VSWR                                                         <1.5

        增益Gain                                                                    15(dBi)

        半功率波束 (3dB)HPBW                                               65°H-plane  13°E-plane

        前后比F/B                                                                   >25(dB)

        功率容量 Maximum Power                                          200(W)

        極化方式 Polarization                                                 垂直極化Vertical Polarization

        交調PIM                                                                     <-107(dBm)

        接口Connector Type                                                  N-K

        閃電保護 Lighting Protection                                      直接接地Direct Ground

        抗風Wind Velocity                                                      200(km/h)

        直徑Diameter                                                            700/165/55(mm)

        重量Weight                                                               5(Kg)

        抱桿直徑Hold Pole Diameter                                      φ50-φ110(mm)
