                    產品名稱 :

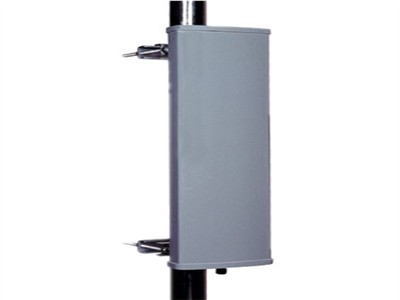

                    90°-15dBi基站平板定向天線（1710-1990MHz）




                    產品類別 :
                    通信天線




                    型號 :
                    KTWTD-12070-09V




                    價格 :











                    (點擊圖片可放大)















        商品介紹


        主要特性


        規格參數


        配件/保修




































產品方向圖:




詳細說明:


        型號Model                                                       TQWTD-15090-1.8V    TQWTD-15090-1.9V


        頻率范圍FrequencyRange                                1710-1880(MHz)         1850-1990(MHz)


        輸入阻抗Input Impedance                                50(Ω)


        駐波比系數VSWR                                               <1.5


        增益Gain                                                          15(dBi)


        半功率波束(3dB)HPBW                                      90°H-plane          8°E-plane

        前后比F/B                                                         >23(dB)


        功率容量Maximum Power                                 500(W)


        極化方式Polarization                                        垂直極化Vertical Polarization


        交調PIM                                                           <-107(dBm)

        接口Connector Type                                        N-K

        閃電保護Lighting Protection                             直接接地Direct Ground


        抗風Wind Velocity                                            200(km/h)

        高/寬/厚Height/Width/Depth                           1050/165/55(mm)


        重量Weight                                                     7(Kg)


        抱桿直徑Hold Pole Diameter                            φ50-φ110(mm)
