                    產品名稱 :

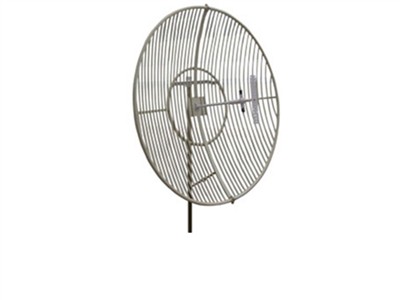

                    (450-470MHz)17dBi-1.8m柵格拋物面天線




                    產品類別 :
                    通信天線




                    型號 :
                      KTWTP-17-046V




                    價格 :











                    (點擊圖片可放大)















        商品介紹


        主要特性


        規格參數


        配件/保修




































向圖:




詳細說明:


        型號Model                                                                        KTWTP-17-046V

        頻率范圍FrequencyRange                                                   450-470(MHz)


        輸入阻抗Input Impedance                                                   50(Ω)


        駐波比系數VSWR                                                                  <1.5


        增益Gain                                                                            17(dBi)


        半功率波束(3dB)HPBW                                                        19°H-plane

        前后比F/B                                                                           >20(dB)


        功率容量Maximum Power                                                   200(W)


        極化方式Polarization                                                           垂直極化Vertical Polarization


        接口Connector Type                                                           N-K


        閃電保護Lighting Protection                                                直接接地Direct Ground


        抗風Wind Velocity                                                              200(km/h)


        直徑Diameter                                                                     1800(mm)


        重量Weight                                                                        25(Kg)


        抱桿直徑 Hold Pole Diameter                                             φ40-φ80(mm)
